Cotes Desalter

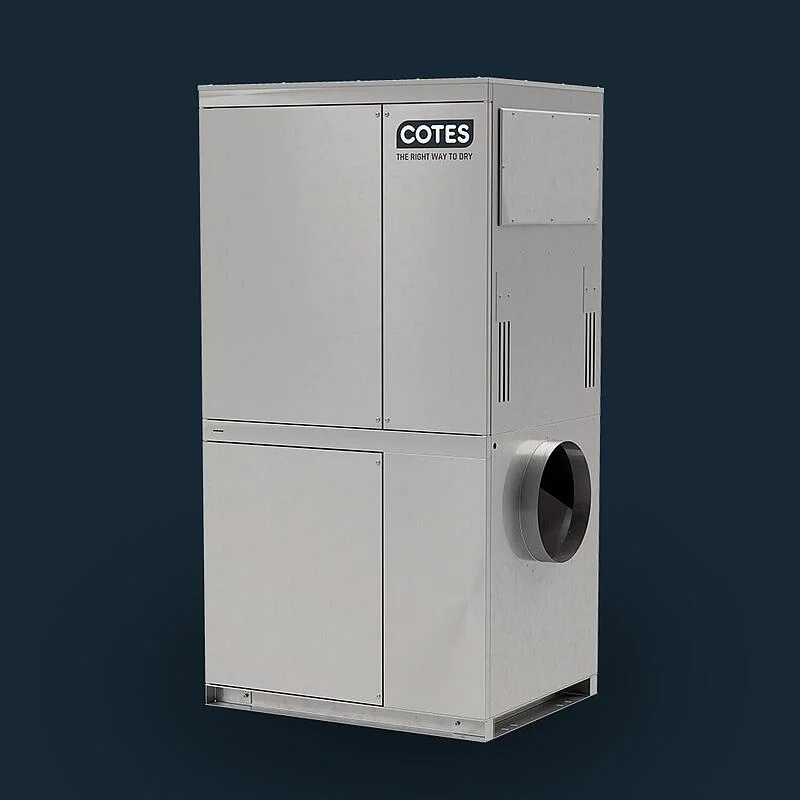

CD65

Desalter climate control system for coastal and maritime structures

The CD65 is part of the Cotes Desalter product family — adsorption-based climate control systems developed to manage humidity and salt contamination in coastal and maritime environments.

The unit operates using the Cotes desalting principle, combining controlled overpressure, filtration, adsorption drying and desalting.

Rather than attempting to dry the surrounding marine atmosphere, the CD65 focuses on limiting the ingress of humid and salt-laden air while stabilising the internal air column inside the structure.

By maintaining a controlled internal overpressure, the system reduces the amount of external air entering the structure. This reduces the drying demand while allowing the system to progressively dry and desalt the internal air, lowering humidity levels and reducing salt accumulation.

The CD65 is typically applied in larger coastal installations and maritime infrastructure, where higher airflow and climate stabilisation capacity are required.

Explanation of Naming

The product designation follows Cotes naming logic:

  • C – Cotes adsorption-based climate solution platform
  • D – Desalter application concept
  • 65 – Capacity class within the Desalter product family

The Desalter designation identifies systems designed to combine overpressure, filtration, adsorption drying and desalting for coastal and maritime environments.

Position within the Cotes Desalter family

The CD65 represents the highest-capacity system within the Desalter range.

The Desalter family consists of:

  • CD26 – compact desalting and humidity control system
  • CD35 – mid-capacity coastal climate control system
  • CD65 – high-capacity system for larger coastal structures and higher air exchange environments

All units apply the same desalting strategy, combining:

  • controlled internal overpressure
  • filtration of incoming air
  • adsorption drying
  • desalting of the internal air column

While technically related to the Cotes Wind Overpressure (CWO) systems used in offshore wind turbines, the Desalter family is positioned for coastal and maritime infrastructure outside the wind turbine environment.

Read more + Read less -
Controlled overpressure strategy: Maintains a slight internal overpressure inside the structure, limiting the ingress of humid and salt-laden marine air.
Salt ingress reduction and desalting: Incoming make-up air is filtered while the internal air column is progressively dried and desalted.
Adsorption drying technology: Rotor-based adsorption removes moisture from the internal air volume and stabilises humidity levels.
Marine environment application: Designed for coastal and maritime environments exposed to humidity, salt aerosol and pressure-driven air exchange.
Reduced drying demand: By limiting external air ingress, the system reduces the volume of humid air that must be continuously dried.
High-capacity desalting system: The CD65 provides the highest airflow and climate stabilisation capacity within the Cotes Desalter family.
Request a quote

TECHNICAL DATA

Model DRY AIR (M3/H) REGENERATION AIR (M3/H) CONNECTED LOAD (kW) MOISTURE REMOVAL CAPACITY (KG/H) DIMENSIONS (WxDxH) DATASHEET PRODUCT MANUAL
CD26 80 40 1,2 N/A 484 / 333 / 840 Datasheet
Request Manual
CD35 300 150 5,3 N/A 624 / 454 / 1328 Datasheet
Request Manual
CD65 1000 500 15,7 N/A 1075 / 829 / 2001 Datasheet
Request Manual
check

OVERPRESSURE CLIMATE CONTROL

Maintains controlled internal pressure to reduce uncontrolled ingress of humid and salt-laden marine air.

check

COASTAL APPLICATION KNOW-HOW

Developed for structures exposed to marine humidity, salt aerosol and pressure-driven air exchange.

check
ADSORPTION DRYING PRINCIPLE

Rotor-based adsorption technology removes moisture from the internal air column and helps prevent condensation.

check
DESALTING FUNCTION

By filtering incoming air and continuously drying the internal air column, the system progressively reduces salt contamination inside the structure.

Frequently Asked Questions

For our full FAQ section you can go to www.cotes.com/FAQ

On this page we highlight some of the more frequently asked questions from customers.



Why is desalting important in coastal environments?
open close

In coastal areas, waves and strong winds generate salt aerosol that becomes suspended in the air. This salt-laden air can enter buildings and technical installations through ventilation openings, pressure differences and service access.

Combined with humidity, salt accelerates corrosion and electrical degradation. Desalting reduces salt accumulation inside the structure and helps stabilise the internal environment.

 Maintaining slight internal overpressure limits the amount of external air entering the structure. This reduces both humidity and salt ingress and lowers the drying load on the system.

 Typical applications include coastal technical buildings, port infrastructure, lighthouses, marine installations, vessels and other nearshore structures exposed to salt and humidity.

Both systems apply the same physical principles of overpressure, filtration, drying and desalting. The difference lies primarily in the application context.

CWO systems are designed specifically for offshore wind turbines, while the Desalter family is intended for coastal and maritime infrastructure outside the wind turbine environment.
