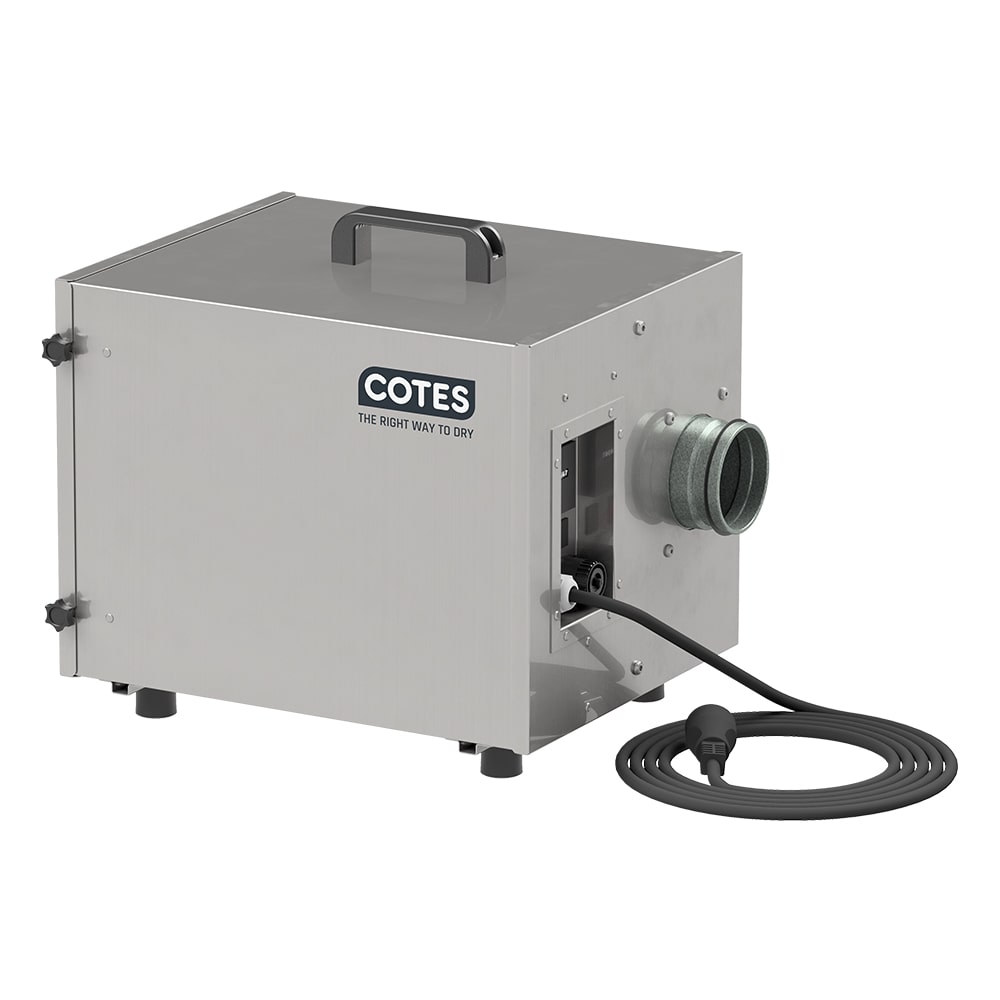

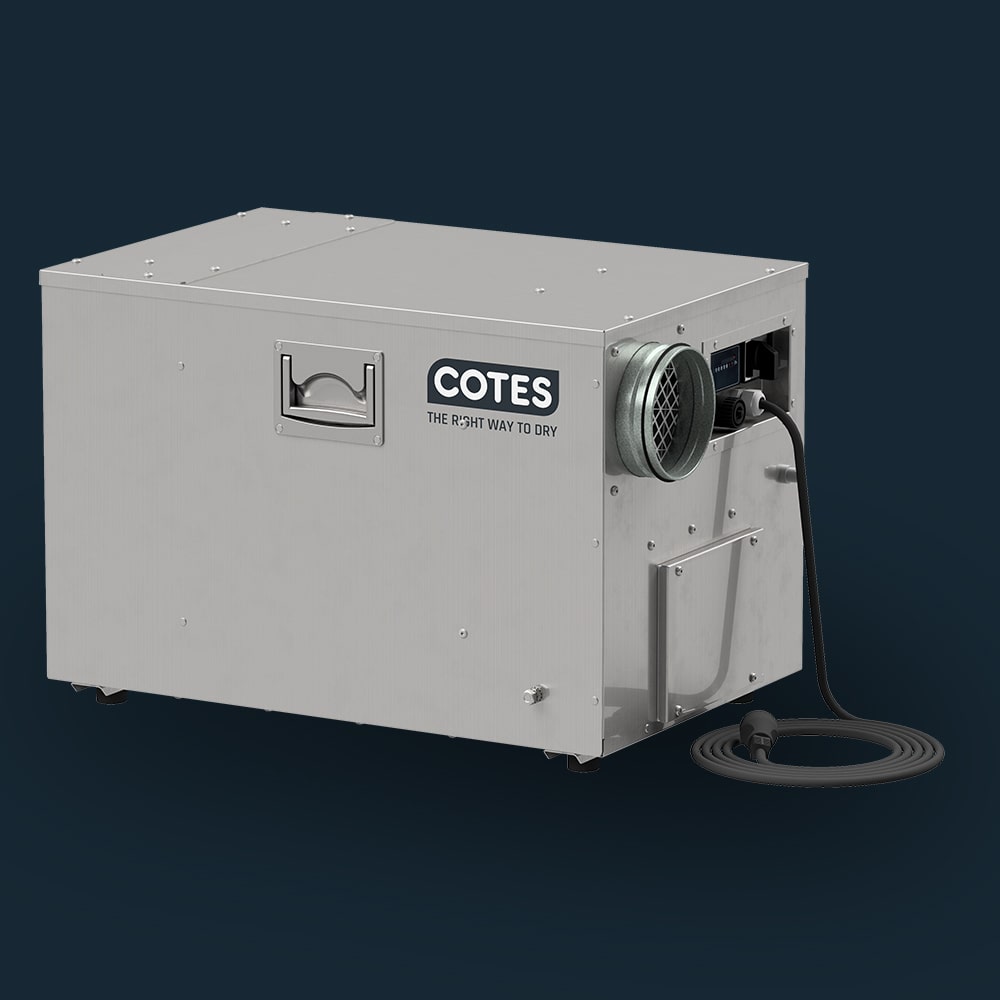

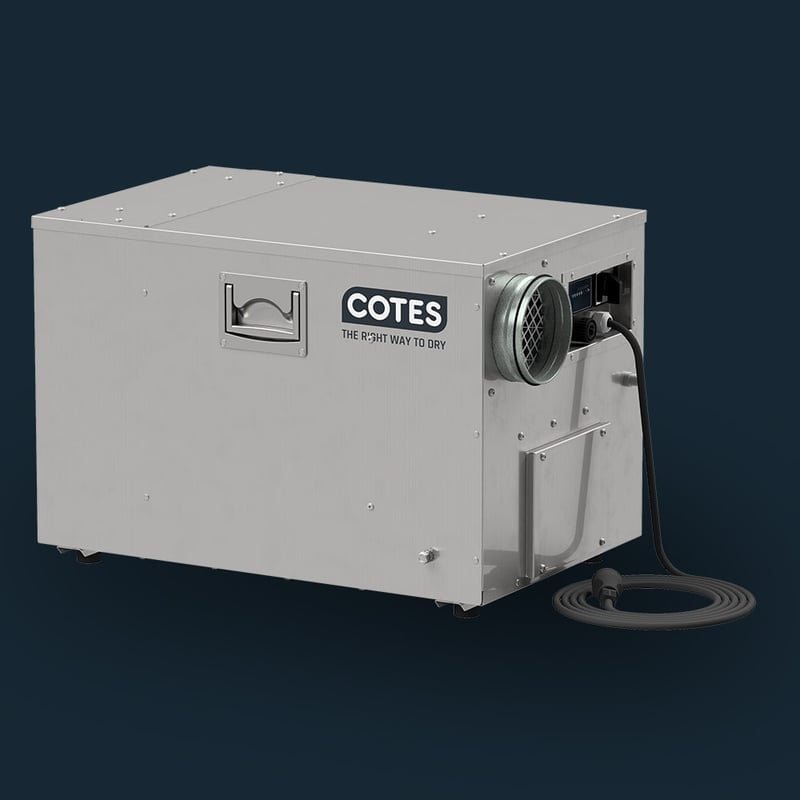

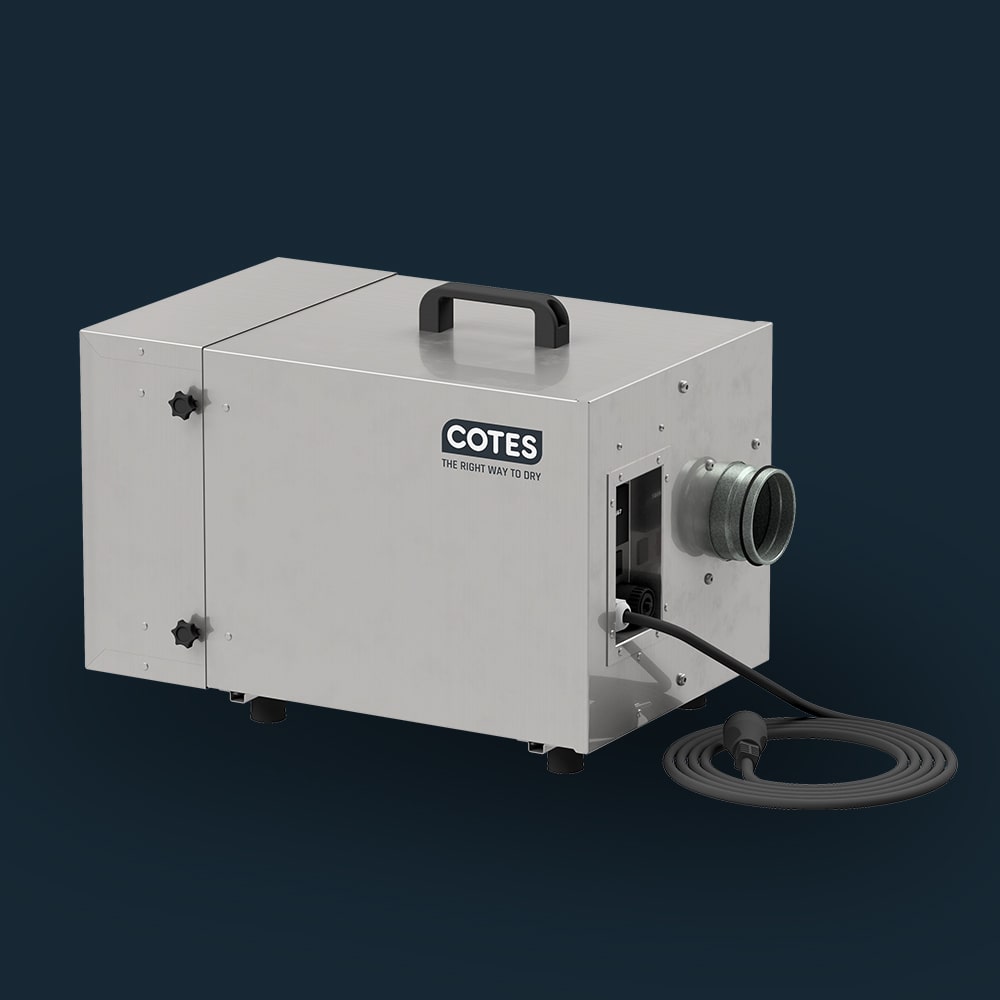

Mobile CR80B-FC/FCS
Moisture removal capacity: | 0.44 kg/h |
Connected load: | 0.83 kW |
Width / Depth / Height (mm) | 458 (FC) 562 (FCS) / 385 / 293 |
WIND ENERGY |
OTHER APPLICATIONS |
Cotes has a range of adsorption dehumidifiers specifically designed for wind turbines and for application throughout the entire life cycle — onshore, nearshore or offshore. Learn more about Cotes dry-air solutions for wind turbines.
Moisture removal capacity: | 0.44 kg/h |
Connected load: | 0.83 kW |
Width / Depth / Height (mm) | 458 (FC) 562 (FCS) / 385 / 293 |
Moisture removal capacity: | 0.8 kg/h |
Connected load: | 1.05 kW |
Width / Depth / Height (mm) | 335 / 400 / 335 |
Moisture removal capacity: | 1.4 kg/h |
Connected load: | 1.97 kW |
Width / Depth / Height (mm) | 410 / 470 / 405 |
This dehumidifier is recommended for Wind Turbine OEM design implementation in the wind turbine nacelle for localized dry-air only when overpressure is not a requirement.

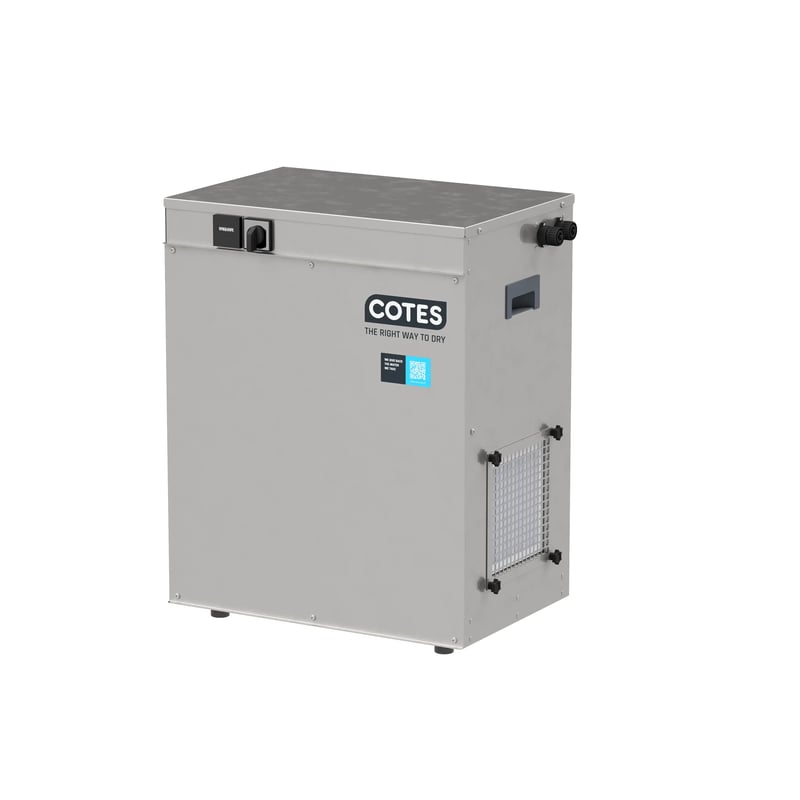

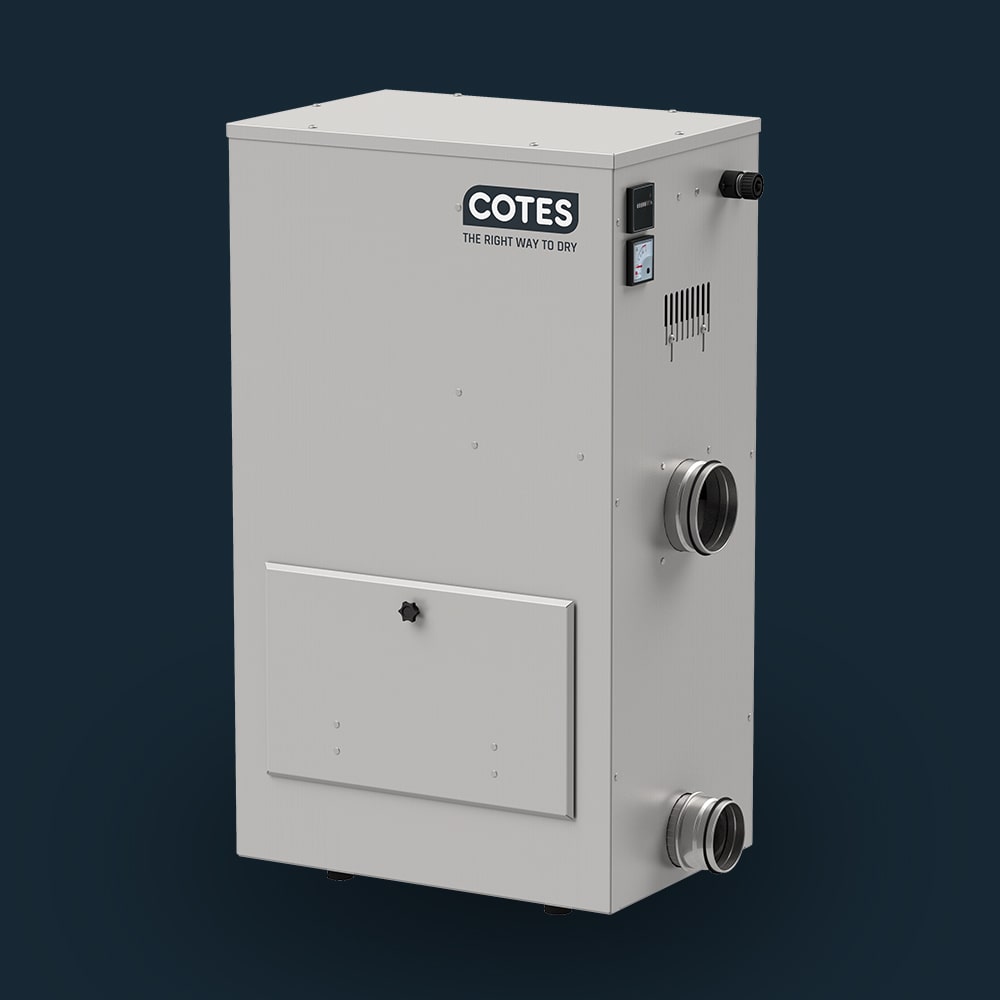

CWO (Cotes Wind Overpressure) Solutions is a patented dehumidifier and desalter specifically designed for wind turbines. The CWO26 units are designed for use in smaller offshore wind turbines where it is vital to prevent any ingress of moisture and salt, or as a supplement in large wind turbines fitted with a CWO65 unit. This provides a reliable flow of 80 m³/hour dry, desalted air into the nacelle and tower.

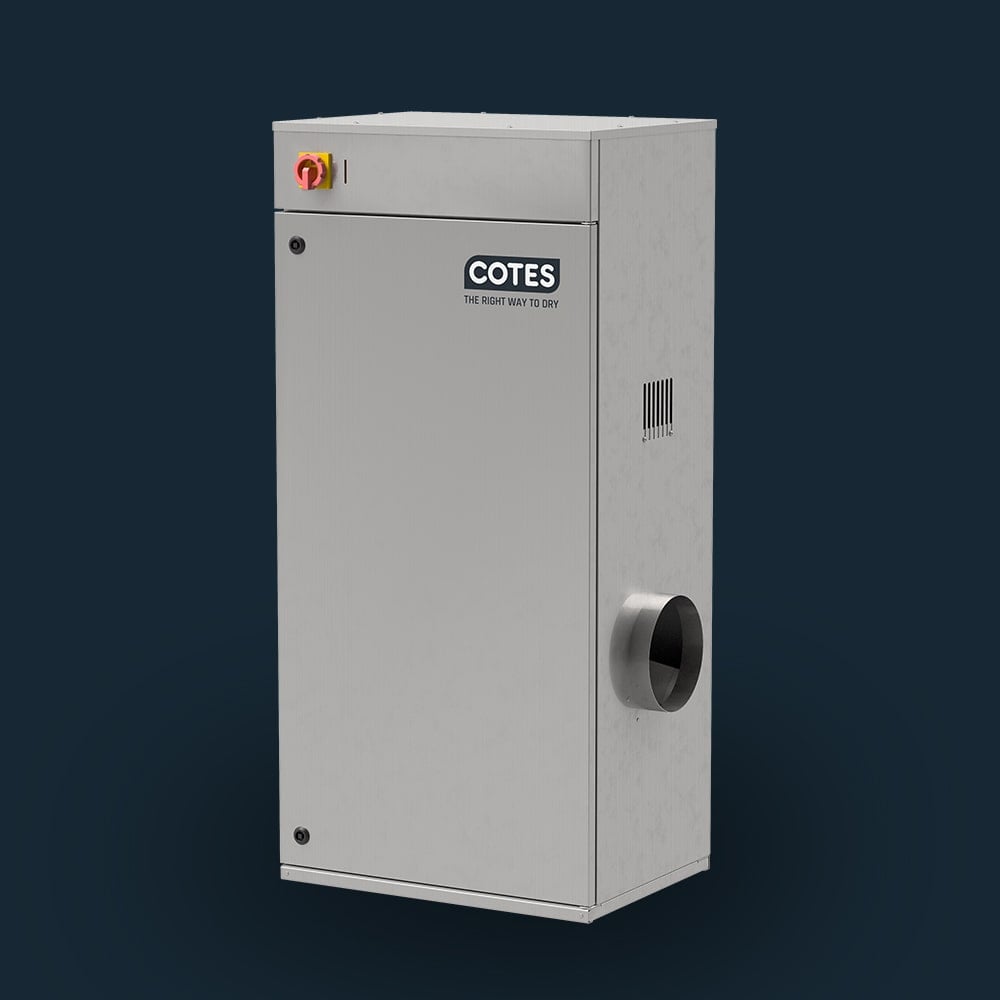

CWO (Cotes Wind Overpressure) Solutions is a patented dehumidifier and desalter specifically designed for wind turbines. The CWO35 units are designed for use in the nacelles and towers of medium-sized offshore wind turbines in which the ingress of moisture and salts is likely to cause significant operational problems and downtime. The unit automatically adjusts flow and performance to ensure a constant flow of 300 m³/hour dry, desalted air into the turbine.

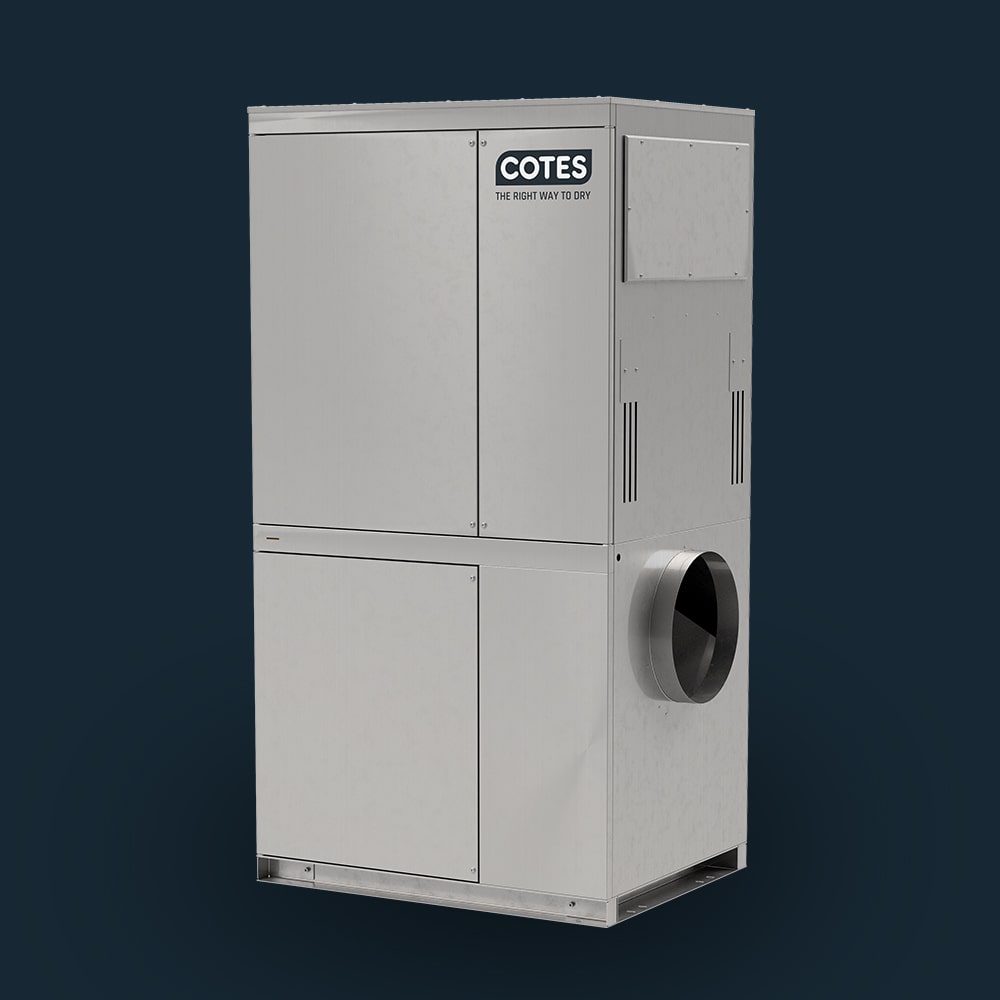

CWO (Cotes Wind Overpressure) Solutions is a patented dehumidifier and desalter specifically designed for wind turbines. The CWO65 units are designed for use in the biggest offshore nacelles and towers. For the very latest and biggest turbines now emerging, two CWO65 units are often used for maximum protection of these extremely valuable assets. The unit automatically adjusts flow and performance to ensure a constant flow of 1000 m³/hour dry, desalted air into the wind turbine.

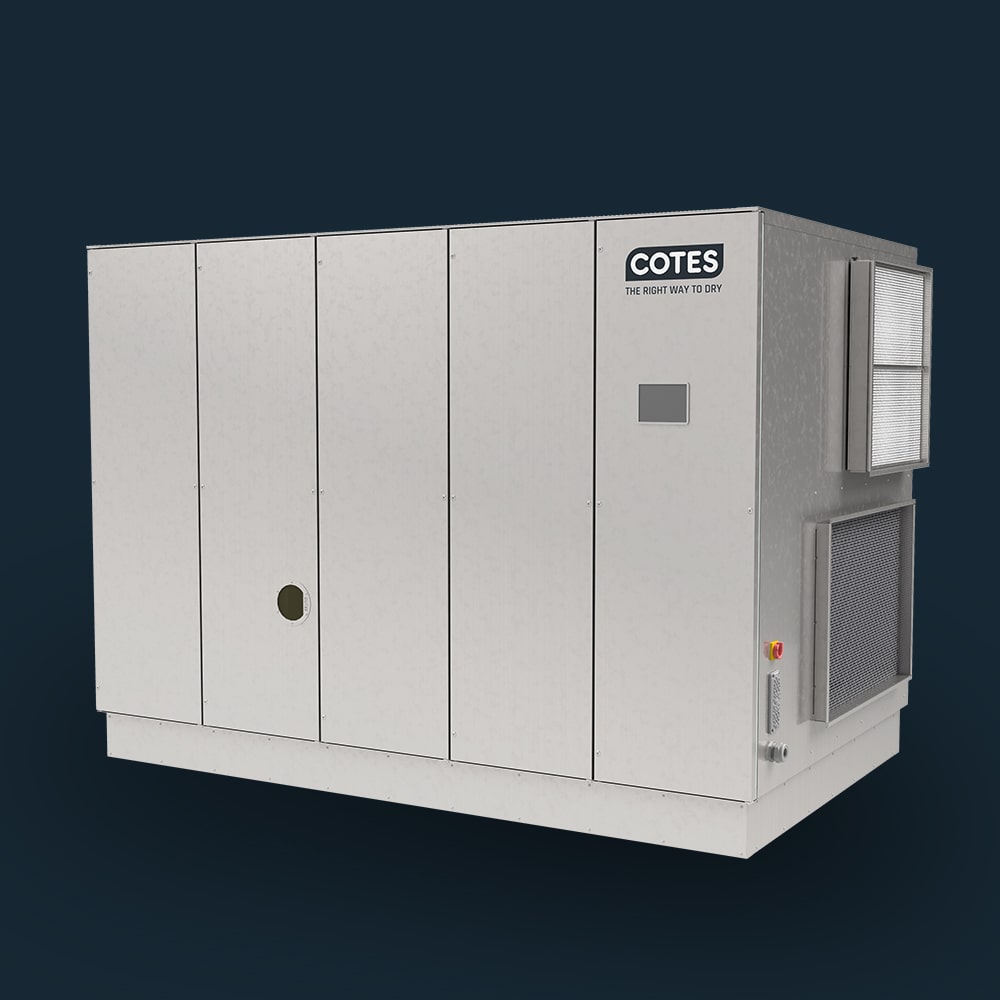

Wind energy is more than just wind turbines. Substations are crucial components in the wind energy infrastructure, filled with expensive and sensitive electrical equipment. If the substation fails, the whole wind farm is off-line. These Ultradry dehumidifiers protect substations from the harmful effects of humidity that causes mould, corrosion and electrical faults. Get a product recommendation
Cotes adsorption dehumidifiers, also known as desiccant dehumidifiers, have a large range of applications in as many different industries. From small room hobby houses to large industrial production and manufacturing facilities — we have the right dry-air solution for you.
Moisture removal capacity: | 0.44 kg/h |
Connected load: | 0.83 kW |
Width / Depth / Height (mm) | 313 / 385 / 293 |
Moisture removal capacity: | 0.8 / 1.1 kg/h |
Connected load: | 1.05 / 1.53 kW |
Width / Depth / Height (mm) | 335 / 400 / 335 |
Moisture removal capacity: | 1.4 kg/h |
Connected load: | 1.97 kW |
Width / Depth / Height (mm) | 410 / 470 / 405 |
Moisture removal capacity: | 0.9 - 1.9 kg/h |
Connected load: | 1.4 - 2.9 kW |
Width / Depth / Height (mm) | 398 / 554 / 771 |
Compatible modules: Air condensation and Heat recovery
Moisture removal capacity: | 3.3 - 4.5 kg/h |
Connected load: | 4.6 - 6.9 kW |
Width / Depth / Height (mm) | 756 / 532 / 1090 |
Compatible modules: Air condensation, heat recovery, pre/post cooling and post heating
Moisture removal capacity: | 8 - 19 kg/h |
Connected load: | 10.2 - 28.8 kW |
Width / Depth / Height (mm) | 1635 / 816 / 1718 |
Compatible modules: Heat recovery included, pre/post cooling and post heating
Moisture removal capacity: | 25 - 51 kg/h |
Connected load: | 36.6 - 67.2 kW |
Width / Depth / Height (mm) | 2075 / 1350 / 2150 |
Compatible modules: Heat recovery, pre/post cooling and post heating

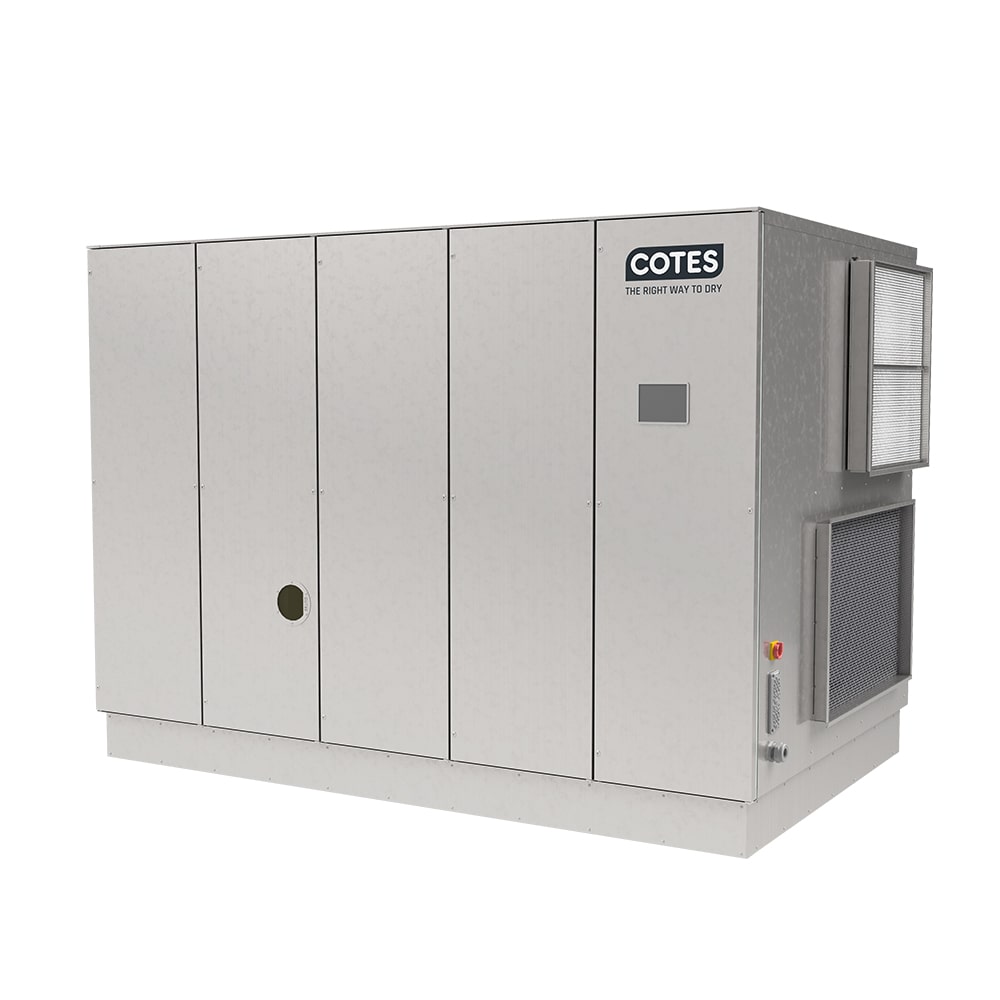

Cotes Ultradry Solutions are for clients with very special performance needs and specifications for larger industrial production or manufacturing processes where precision, performance and stability are key. This range of well-engineered, energy-efficient, reliable dehumidifiers is robustly built and designed for ease of use, maintenance and operation in a range of industries. Ask for a product recommendation.
Cotes provides a wide range of well-engineered, energy-efficient, reliable adsorption dehumidifiers built to last in many industrial applications. Depending on usage, our machines often have around 40.000 operational hours on the clock and still running.
Modular design makes it easy to choose the exact configuration and capabilities best suited to your unique requirements.
Any thermal inputs can be used, and many units are available with heat recovery. Save 20–25% on energy bills for humidity management. Up to 66% with Cotes Excergic Technology.
Cotes experts can help you with the equipment choice best for how your particular operations work, taking all the parameters into consideration.
In close collaboration with our Global Partner Network, Cotes supplies a range of adsorption dehumidifiers to all kinds of industries and applications:
For all wind-related enquiries contact Cotes directly
