    Cotes Mobile Wind

    CR100

    Wall-mounted adsorption dehumidifier for onshore wind turbines

    The CR100 is part of the Cotes Mobile Wind product family — adsorption dehumidifiers developed specifically for retrofit installation in onshore wind turbines.

    Unlike floor-standing Mobile units, the CR100 is designed for wall-mounted installation, typically using a fixed or magnetic wall bracket inside the WTG tower.

    The unit provides controlled dry-air supply to reduce condensation risk and protect electrical cabinets, control systems and internal turbine components.

    Explanation of Naming

    The product designation follows Cotes naming logic:

    • C – Cotes adsorption platform
    • R – Rotor-based adsorption technology
    • 100 – Capacity class within the Mobile Wind range

    The CR100 is positioned directly within the wind-adapted range and does not inherit the “B” (Building) designation.



    Position within the Cotes Mobile Wind family

    The CR100 represents a fixed-mounted retrofit solution within the Mobile Wind range.

    Cotes Mobile Wind units are developed for turbines that were not originally designed with integrated dehumidification. The family includes both:

    • Portable floor-standing units (e.g. CR80B-FC / FCS)
    • Wall-mounted turbine units (e.g. CR100 and larger BW models)

    The CR100 is typically selected where:

    • Defined wall placement is preferred over floor installation
    • Stable, dedicated positioning inside the tower is required
    • A compact vertical format suits the internal turbine layout

    Unlike offshore overpressure systems (CWO family), Mobile Wind units are retrofit solutions intended for flexible integration without major structural modification.

    Read more + Read less -
    Retrofit Installation: Filter cassette configuration designed for tower environments with dust and airborne contaminants.
    Adsorption rotor technology: Rotor-based moisture removal supporting humidity control during both operation and standstill periods.
    Compact retrofit solution: Designed for installation inside existing turbines without major structural modifications.
    Defined airflow performance: Dry air capacity 80 m³/h, regeneration air 40 m³/h, moisture removal 0.44 kg/h (at documented reference conditions).
    Portable deployment: Integrated handles support transport and positioning within the turbine tower.
    Moderate electrical demand: Connected load 0.83 kW, compatible with typical turbine auxiliary power availability.
    Request a quote

    TECHNICAL DATA

    Model DRY AIR (M3/H) REGENERATION AIR (M3/H) CONNECTED LOAD (kW) MOISTURE REMOVAL CAPACITY (KG/H) DIMENSIONS (WxDxH) DATASHEET PRODUCT MANUAL
    CR80B-FCS 80 40 0,83 0,44 485 / 313 / 327 Datasheet
    English
    Request Manual

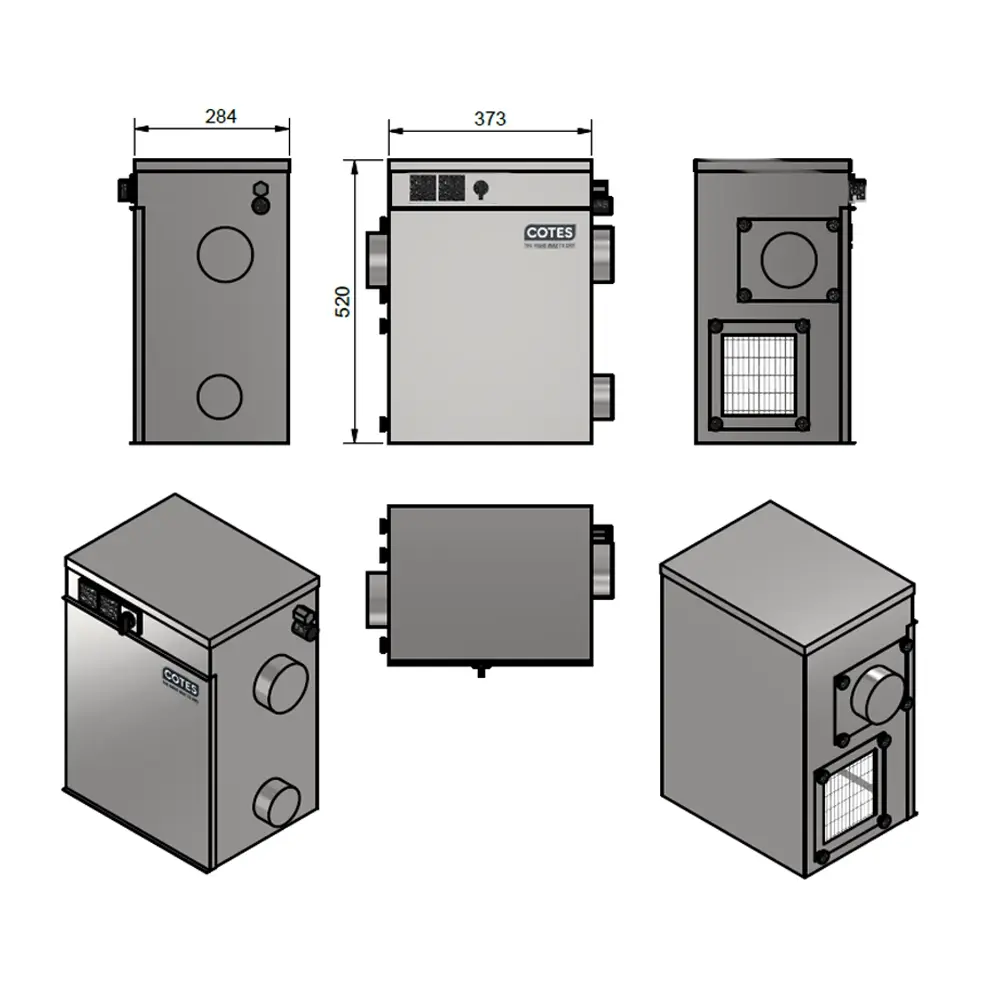

    CR100 100 40 1 0,6 373 / 284 / 520 Datasheet
    English
    Request Manual
    CR240BW 240 40 1,05 0,8 400 / 333 / 361 Datasheet
    English
    Request Manual
    CL26 350 / 250 65 / 40 1.01 / 1,57 1,1 / 0,8 450 / 382 / 374 Datasheet
    English
    Request Manual
    CR400BW 400 90 1,97 1,4 623 / 405 / 431 Datasheet
    English
    Request Manual
    check

    RETROFIT INSTALLATION

    Designed for wall-mounted installation inside wind turbine towers. Often installed using a magnetic or fixed bracket, allowing defined positioning without structural modification.

    check
    APPLICATION KNOW-HOW

    Developed for turbines where humidity control was not originally integrated, supporting targeted protection of electrical cabinets and stabilisation of tower humidity during operation and standstill.

    check
    ADSORPTION DRYING PRINCIPLE

    Rotor-based adsorption dehumidification providing reliable moisture removal across varying temperature conditions, including low-temperature and reduced-ventilation scenarios.

    check
    WIND-ADAPTED DESIGN

    Engineered specifically for turbine environments, with a compact vertical format suited for wall mounting rather than floor placement.

    Frequently Asked Questions

    For our full FAQ section you can go to www.cotes.com/FAQ

    On this page we highlight some of the more frequently asked questions from customers.



    How is the CR100 installed inside a turbine?
    open close

    The CR100 is designed for wall mounting, typically using a magnetic or fixed bracket. It is not intended for floor placement.

     The CR100 is wall-mounted and not floor-standing. It provides higher dry-air capacity (100 m³/h vs. 80 m³/h) and is designed as a more fixed internal installation rather than a repositionable unit.

    The CR100 is primarily positioned for onshore retrofit applications. Offshore installations typically require engineered overpressure systems such as the Cotes Wind Overpressure (CWO) family.

    During standstill, reduced airflow increases condensation risk. Moisture combined with contaminants can accelerate corrosion and reduce electrical insulation resistance during restart.
